Brand: Unique CNC
Model No.: U-UA5025ATC-4
Chuck Diameter: 160mm
Max.Turning Diameter: 250mm
Max.Turning Length: 500mm or 900mm
Price Range: USD4800-5200 according to different configurations
Lead Time: 10 working days
Payment Way: TT, Western Union, Credit Card
HS code: 84659200

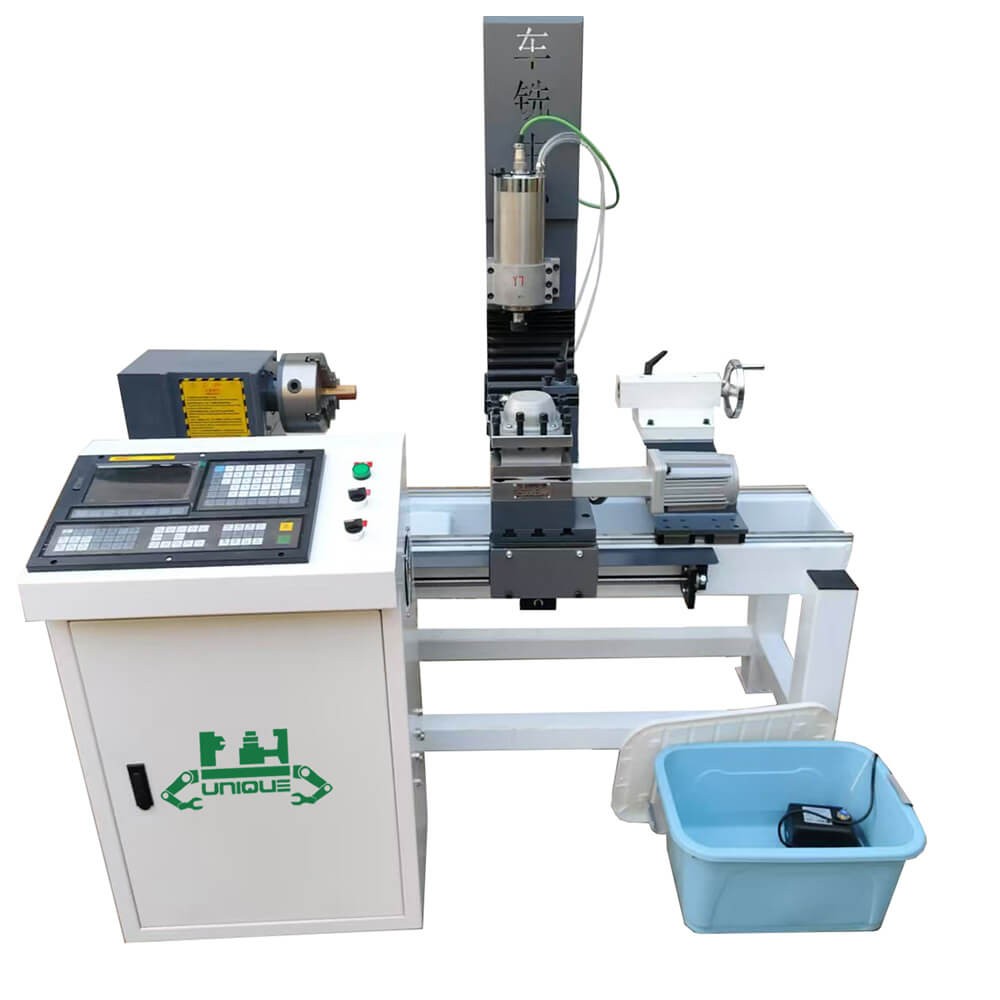

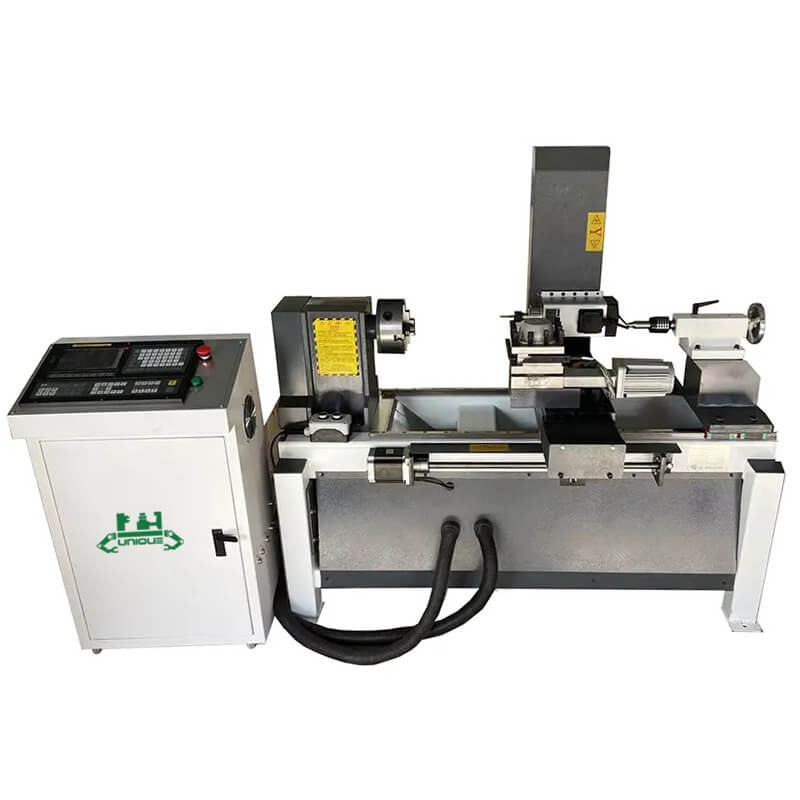

Our small wood turning lathe with integrated milling redefines compact woodworking. From bowl turning and spindle engraving to milling of flutes and engravings, this 2-in-1 machine is your great helper for various small wooden crafts processing.
Seamless Mode Switching: Convert between lathe and milling immediately.
4th Axis Milling: Mill spirals, slots, and 3D patterns on rotating workpieces
Servo motor driving.
| Information | Details |
|---|---|
| Model No. | U-UA5025ATC-4 small wood lathe with auto tools changing and 4th spindle |
| Control system | CNC control, compatible with G code |
| Working size | 3-250mm diameter, 500mm or 900mm length |
| Chuck diameter | 160mm |
| Function | turning, hollowing, drilling, cutting off, auto tools changing, engraving, milling |
| Tailstock | included |
| Transmit | high precision ballscrews, 20mm linear square guide rails |
| Driving system | big stepper motors, X-axis motor is 6N.M, Y-axis motor is 4N.M |
| Turning spindle | Servo |
| Engraving/Milling spindle power | 3.5KW |
| Turning spindle rotate speed | 2800rpm |
| Engraving spindle rotate speed | 0-18000rpm |
| Accuracy | 0.02mm at most |
| Machine voltage | AC220V/380V |
| Standard tools | Hollowing tool and holder: 1 set Cut off cuter: 1 piece Outer turning tool and holder: 1 set |
Home Crafts & Gifts
Wooden pens, rings, Christmas ornaments
Small-Scale Artistry
Miniature bowls, chess pieces, dollhouse furniture
Educational Use
Safe for schools and DIY workshops
Q: Can I use metal-cutting end mills on this lathe?
A: Designed for wood/plastics only.
Q: How to clamp irregular shapes for milling?
A: Use the rotary indexing attachment (optional) to fix asymmetrical workpieces.
Q: Is CNC experience required?
A: The machine is compatible with G code generated by Mastercam, UG, and other softwares.
We give detailed training videos and free service online.
