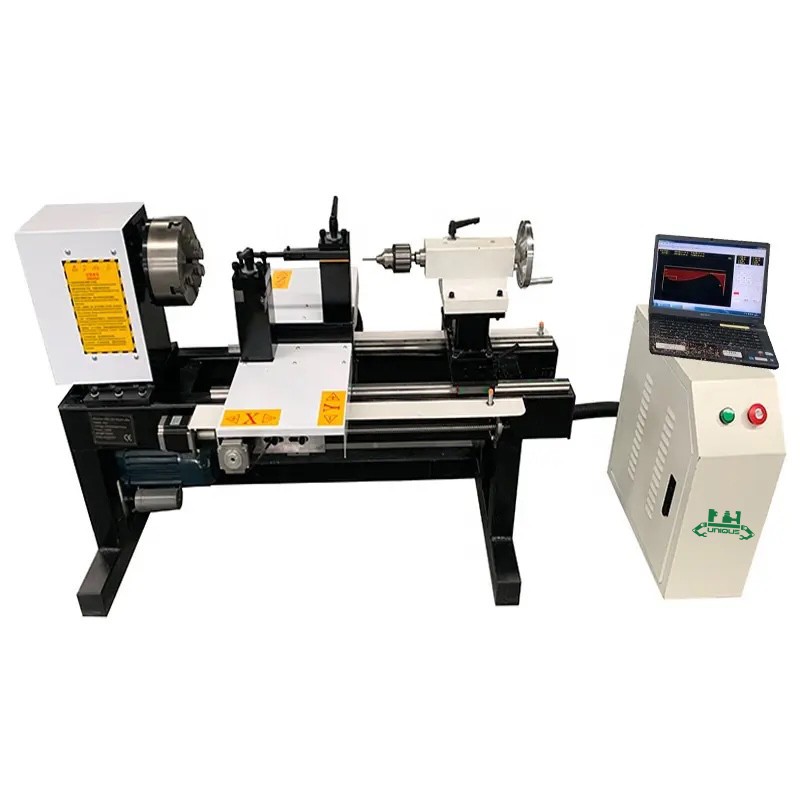

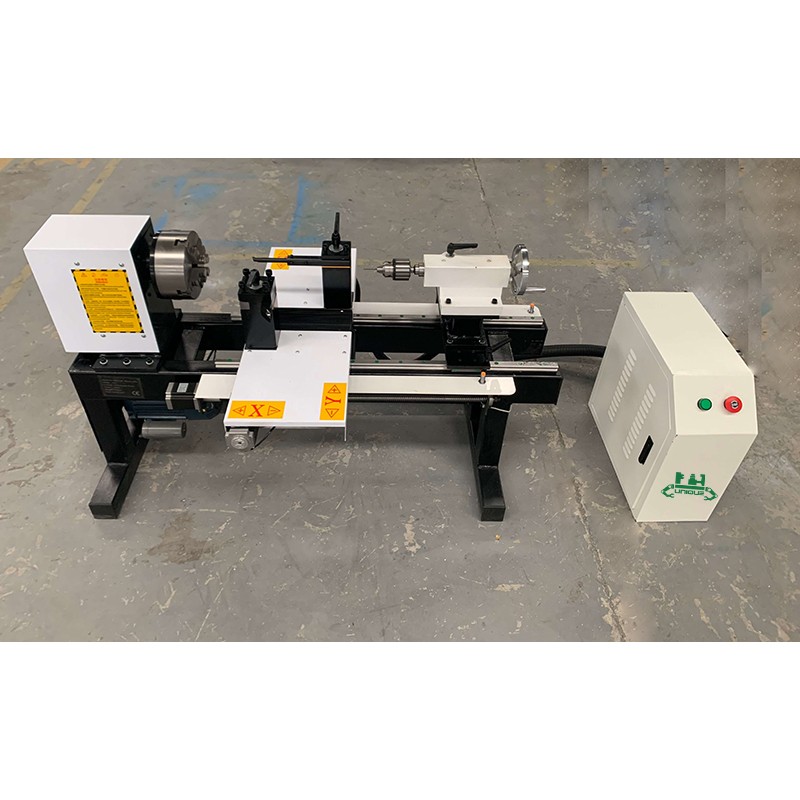

Affordable Mini CNC Wood Lathe

Brand: Unique CNC
Model No.: U-UA26
Chuck Diameter: 160mm
Max.Turning Diameter: 260mm
Price Range: USD2000-2400 according to different configurations
Lead Time: 5-8 working days
Payment Way: TT, Western Union, Credit Card
HS code: 84659200

Email Us

Mini CNC Wood Lathe- External Turning, Internal Boring, Drilling and Cutting Off

Our mini CNC wood lathe combines compact size with computer control, ideal for hobbyists and craft studios. Effortlessly handle external turning, internal boring, drilling, and intricate carvings – all in a space-saving design.

vido

Wooden Beads

Wooden

Main features of the Computer Controlled Mini Wood Lathe

Space-Saving Design: compact wood lathe for small workshops
Computer controlled Mini Lathe: make drawings by autoCAD, the machine`s controller is compatible with DXF files
Multi-Functional Toolpost: Swap tools for turning, boring, and drilling in seconds, it is a multi-purpose mini lathe
Beginner-Friendly: Easy to operate and learn

Technicial Specifications of The Compact Wood Lathe Machine

Item	Specification
Model No.	U-UA26 Mini CNC Wood Lathe
Working Size	Diameter: 3-260mm, Length: 500mm
Chuck Diameter	160mm
Functions	Turning, Hollowing, Drilling, Cutting Off
Tailstock	Included
Transmission	High-precision ball screws, linear square guide rails
Driving System	Stepper motors and drivers
Spindle Power	1.1KW
Total Power	1.5KW
Spindle Speed	2800 RPM
Accuracy	≤0.02mm
Compatible Format	DXF
Control System	4-Axis Mini Lathe Controller
Operation	Laptop required for operation
OS Compatibility	All Windows systems
Connection	LAN cable
Voltage	AC220V/110V (Single Phase)
Machine Size	1300 × 800 × 700mm (L × W × H)
Standard Tools	- Hollowing tool and holder: 1 set - Cut-off cutter (soft wood): 1 piece - Outer turning tool and holder: 1 set
